Product Data Validation and Visualization Workflow

This workflow demonstrates how to fetch product data from an API, validate its structure, reformat it, and visualize the results as a chart.

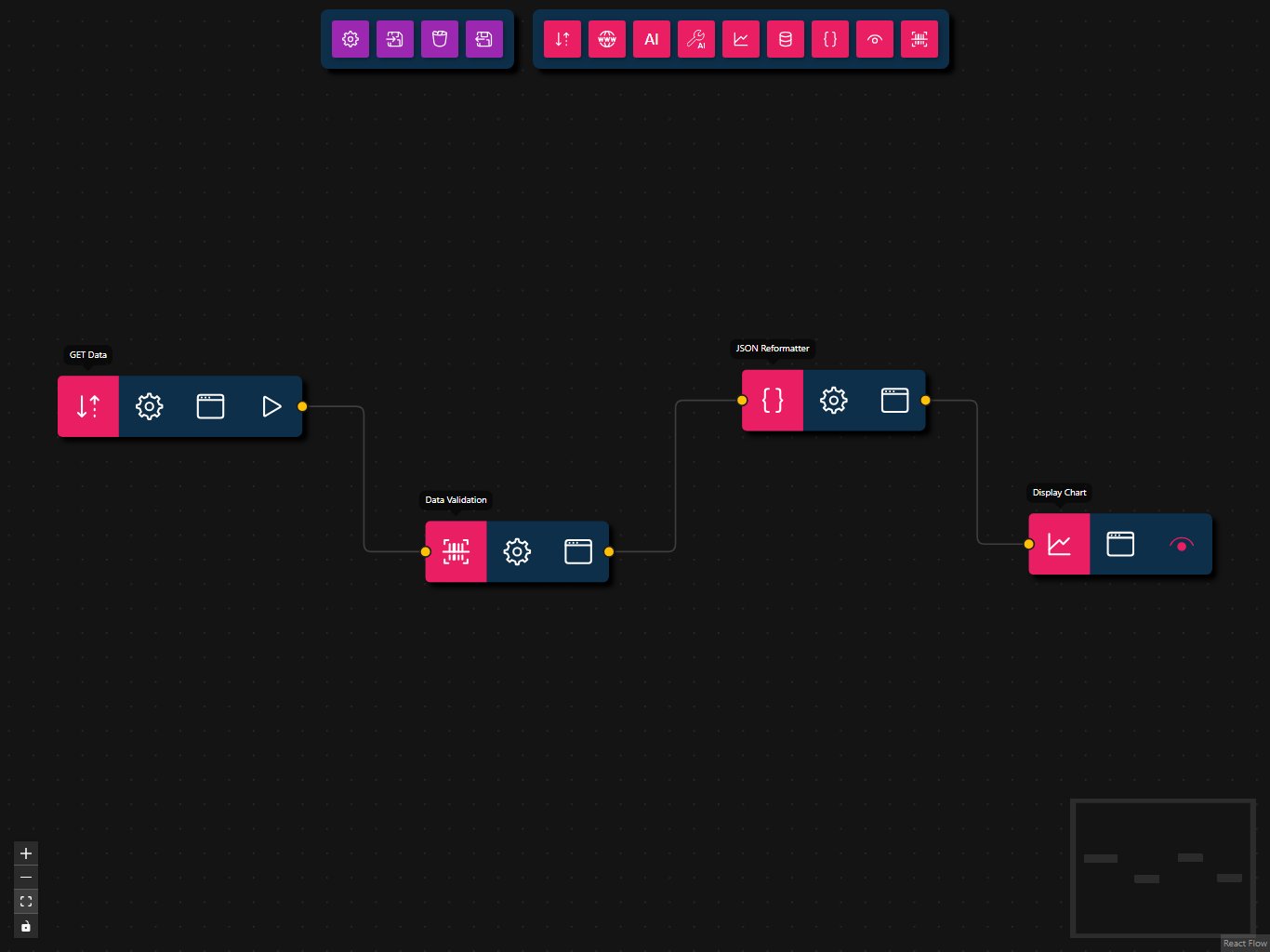

Preview

JSON

{
    "nodes": [
        {
            "id": "4e5ed23f-31a2-42c8-ad39-e077ef1cdf82",
            "type": "get-data",
            "position": {
                "x": 70,
                "y": 90
            },
            "data": {
                "title": "GET Data",
                "url": "https://dummyjson.com/products",
                "dataType": "json"
            },
            "measured": {
                "width": 160,
                "height": 40
            },
            "selected": false,
            "dragging": false
        },
        {
            "id": "e16a3420-8a94-4256-a370-57dd7f8c4456",
            "type": "data-validation",
            "position": {
                "x": 300,
                "y": 200
            },
            "data": {
                "title": "Data Validation",
                "schema": "{\r\n  \"type\": \"object\",\r\n  \"properties\": {\r\n    \"products\": {\r\n      \"type\": \"array\",\r\n      \"items\": {\r\n        \"type\": \"object\",\r\n        \"required\": [\"id\", \"title\", \"price\"],\r\n        \"properties\": {\r\n          \"id\": { \"type\": \"integer\" },\r\n          \"title\": { \"type\": \"string\" },\r\n          \"price\": { \"type\": \"number\" }\r\n        }\r\n      }\r\n    }\r\n  },\r\n  \"required\": [\"products\"]\r\n}"
            },
            "measured": {
                "width": 120,
                "height": 40
            },
            "selected": false,
            "dragging": false
        },
        {
            "id": "f2d2b6a9-c9d6-48c9-a5e1-8a2d08607054",
            "type": "json-reformatter",
            "position": {
                "x": 500,
                "y": 90
            },
            "data": {
                "title": "JSON Reformatter",
                "jsonataExpression": "{\r\n  \"title\": \"Product Prices\",\r\n  \"labels\": products.title,\r\n  \"data\": products.price\r\n}"
            },
            "measured": {
                "width": 120,
                "height": 40
            },
            "selected": false,
            "dragging": false
        },
        {
            "id": "df939c05-8707-4335-862c-e8b2826223f2",
            "type": "chart",
            "position": {
                "x": 700,
                "y": 200
            },
            "data": {
                "title": "Display Chart"
            },
            "measured": {
                "width": 120,
                "height": 40
            },
            "selected": true,
            "dragging": false
        }
    ],
    "edges": [
        {
            "type": "smoothstep",
            "animated": false,
            "source": "4e5ed23f-31a2-42c8-ad39-e077ef1cdf82",
            "sourceHandle": "right-source",
            "target": "e16a3420-8a94-4256-a370-57dd7f8c4456",
            "targetHandle": "left-target",
            "id": "xy-edge__4e5ed23f-31a2-42c8-ad39-e077ef1cdf82right-source-e16a3420-8a94-4256-a370-57dd7f8c4456left-target"
        },
        {
            "type": "smoothstep",
            "animated": false,
            "source": "e16a3420-8a94-4256-a370-57dd7f8c4456",
            "sourceHandle": "right-source",
            "target": "f2d2b6a9-c9d6-48c9-a5e1-8a2d08607054",
            "targetHandle": "left-target",
            "id": "xy-edge__e16a3420-8a94-4256-a370-57dd7f8c4456right-source-f2d2b6a9-c9d6-48c9-a5e1-8a2d08607054left-target"
        },
        {
            "type": "smoothstep",
            "animated": false,
            "source": "f2d2b6a9-c9d6-48c9-a5e1-8a2d08607054",
            "sourceHandle": "right-source",
            "target": "df939c05-8707-4335-862c-e8b2826223f2",
            "targetHandle": "left-target",
            "id": "xy-edge__f2d2b6a9-c9d6-48c9-a5e1-8a2d08607054right-source-df939c05-8707-4335-862c-e8b2826223f2left-target"
        }
    ]
}

Node Configuration

• GET Data
  • URL: https://dummyjson.com/products
  • Data Type: JSON
• Data Validation
  • Schema: Ensures the response contains a products array with objects having id, title, and price
• JSON Reformatter
  • Expression: Extracts product titles and prices for charting
• Chart
  • Displays the formatted product data as a chart

---

Steps

1. Fetch Data: The workflow starts by retrieving product data from a public API.
2. Validate Structure: The Data Validation node checks that the data matches the expected schema, preventing downstream errors.
3. Reformat Data: The JSON Reformatter node reshapes the validated data for visualization.
4. Visualize: The Chart node displays product prices as a chart.
