Google Drive Listing Workflow

This workflow fetches a list of files from your Google Drive using a search query and summarizes the results using AI.

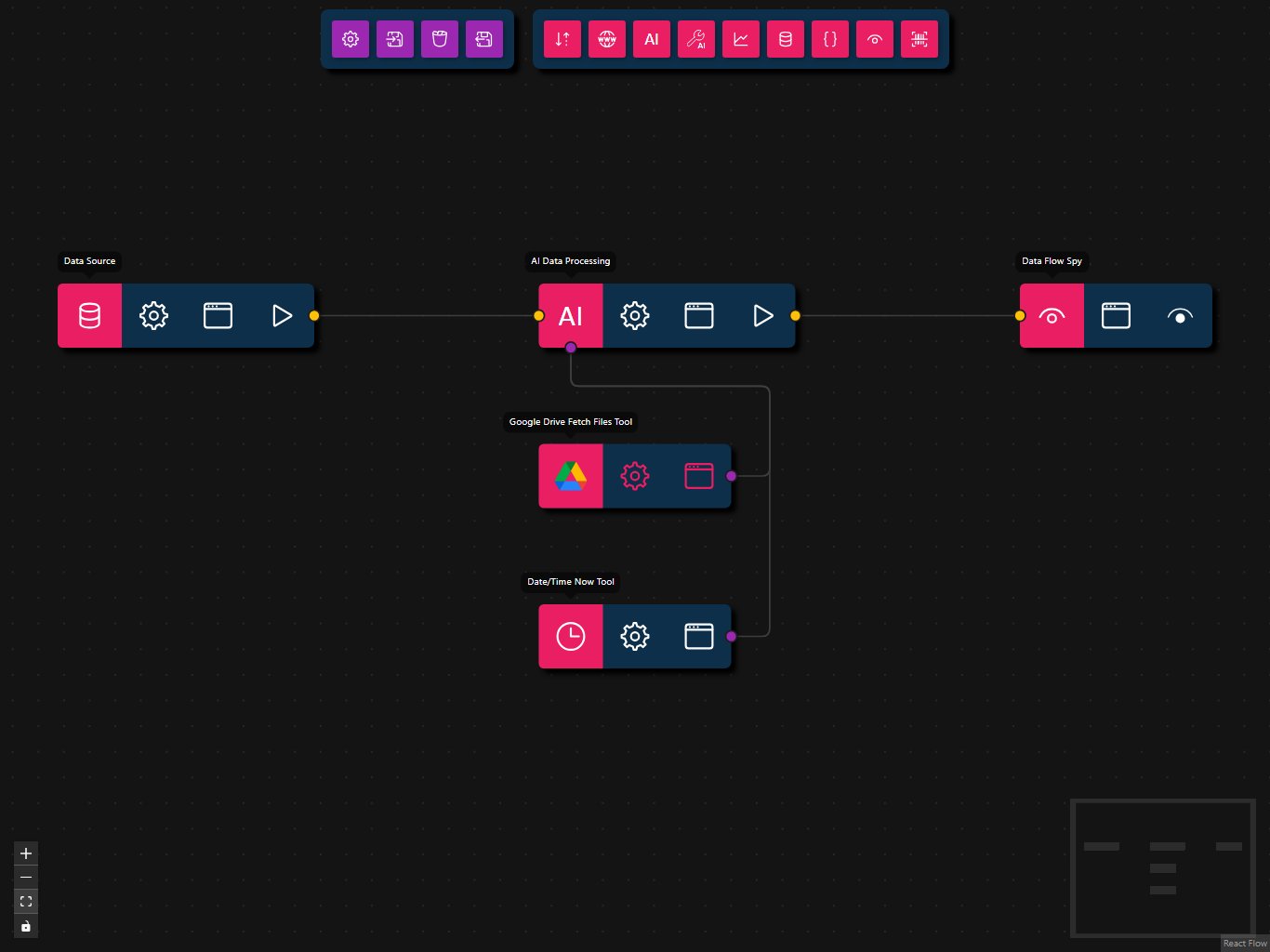

Preview

JSON

{
    "nodes": [
        {
            "id": "b3d137fa-6534-4fc0-a6e0-15ee919be276",
            "type": "data-source",
            "position": {
                "x": 100,
                "y": 100
            },
            "data": {
                "title": "Data Source",
                "dataSource": {
                    "value": "Can you tell me the latest document that was created?",
                    "type": "text"
                }
            },
            "measured": {
                "width": 160,
                "height": 40
            },
            "selected": false
        },
        {
            "id": "8a0dd721-4139-4ca4-bcc9-2624aad5b309",
            "type": "ai-tool",
            "position": {
                "x": 400,
                "y": 200
            },
            "data": {
                "title": "Google Drive Fetch Files Tool",
                "toolSubtype": "gdrive-fetch-files",
                "userConfig": {
                    "maxResults": 5
                }
            },
            "measured": {
                "width": 120,
                "height": 40
            },
            "selected": false
        },
        {
            "id": "ca0be528-34f5-48e2-8d89-3c50260998c3",
            "type": "ai-tool",
            "position": {
                "x": 400,
                "y": 300
            },
            "data": {
                "title": "AI Tool",
                "toolSubtype": "date-time-now",
                "userConfig": {}
            },
            "measured": {
                "width": 120,
                "height": 40
            },
            "selected": false
        },
        {
            "id": "7b0f7a40-769c-4406-a90b-2717db038e78",
            "type": "llm-process",
            "position": {
                "x": 400,
                "y": 100
            },
            "data": {
                "title": "AI Data Processing",
                "prompt": "Provide all answers in Markdown format.",
                "model": "",
                "maxFeedbackLoops": 0
            },
            "measured": {
                "width": 160,
                "height": 40
            },
            "selected": true
        },
        {
            "id": "3211e250-9339-4d0f-afaf-9fa3f8ce1ddc",
            "type": "data-flow-spy",
            "position": {
                "x": 700,
                "y": 100
            },
            "data": {
                "title": "Data Flow Spy"
            },
            "measured": {
                "width": 120,
                "height": 40
            },
            "selected": false
        }
    ],
    "edges": [
        {
            "id": "f0e05088-09fb-44dc-b6d0-3c433d237d88",
            "source": "b3d137fa-6534-4fc0-a6e0-15ee919be276",
            "target": "7b0f7a40-769c-4406-a90b-2717db038e78",
            "animated": false
        },
        {
            "id": "87b8e752-bdc4-4b12-b866-6249023c785f",
            "source": "8a0dd721-4139-4ca4-bcc9-2624aad5b309",
            "target": "7b0f7a40-769c-4406-a90b-2717db038e78",
            "targetHandle": "tools-target"
        },
        {
            "id": "3eb73176-bb89-4a3e-955e-fd5d1d0492a3",
            "source": "ca0be528-34f5-48e2-8d89-3c50260998c3",
            "target": "7b0f7a40-769c-4406-a90b-2717db038e78",
            "targetHandle": "tools-target"
        },
        {
            "id": "3c6892d46-614b-4a1e-a9f7-6970579860bd",
            "source": "7b0f7a40-769c-4406-a90b-2717db038e78",
            "target": "3211e250-9339-4d0f-afaf-9fa3f8ce1ddc",
            "animated": false
        }
    ]
}

Node Configuration

• Data Source
  • Input: "Can you tell me the latest document that was created?"
• Google Drive Fetch Files Tool
  • Tool: Fetches files from Google Drive using a search query (query parameter)
  • Requirements: Google Drive API access and authentication
• Date/Time Now Tool
  • Tool: Returns the current date and time in ISO 8601 format
• AI Data Processing
  • Prompt: Provide all answers in Markdown format
  • Model: llama3.1:8b
• Data Flow Spy
  • Output: Summarized list of recent Google Drive files with key details.

---

Steps

1. Provide Input: The workflow starts with a Data Source node that supplies the prompt: "Can you tell me the latest document that was created?"
2. Interpret & Tool Calls: The AI Data Processing node interprets the input, determines which tools are needed, and calls the Google Drive Fetch Files Tool and Date/Time Now Tool.
3. Summarize with AI: The LLM receives the tool results and generates a summary of the most recent Google Drive files with key details.
4. Output Result: The Data Flow Spy node displays the summarized output.
